Audio Mechanics features two mastering rooms designed for 5.1 from the ground up; a live room and vocal booth for recording and ADR, and a stereo mastering control room. A well thought out design with complete audio/video/data integration among all rooms and facility-wide Equi=Tech balanced power to eliminate grounding problems. The centralized equipment room allows rooms to share resources efficiently and quickly recover from equipment failures. Even the juke box in the lounge can be routed to any sound room or office in the facility!

"Detailing" (5.1 from inception)

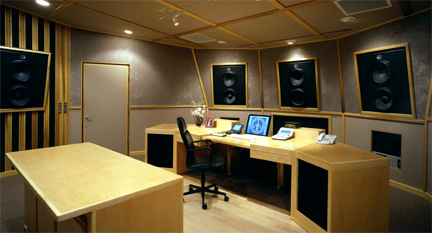

This state-of-the-art 5.1 mastering room features instant room tuning presets to adapt to the project. A "flat" setting for music mastering; a Dolby certified film setting for print mastering; a screen compensation EQ setting for the center channel when the Stuart screen is lowered for picture projection; and a delay compensation for the digital video projector. Up to 50 different room tunings can be stored to simulate various listening environments. The speaker system features an ITU placement of 5 matched dual 15" Pelonis Series mains, based on a Tannoy 15" dual concentric phase linear driver integrated with a super fast low frequency driver and a super tweeter that extends the frequency response up to 80 kHz. JBL dual 18" sub-woofer delivers a thundering "point-one punch".

The room is georgeous, the sound is amazing, the imaging is perfect. It's all about the details.

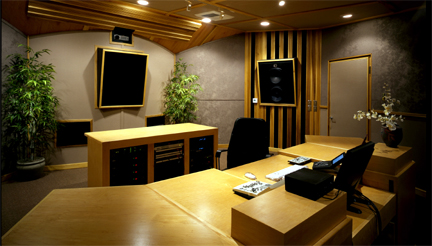

A view of the rear wall of "Detailing" featuring a rear center channel soffit, Pelonis Edge technology bass trapping with a first ever acoustic RPG peg board utilizing a mathematically randomized hole pattern to permit near perfect bass absorption along with an evenly distributed diffusion above 500 Hz... but, of course, you've got to hear it!
